Radiation Protection Detection & Measurement
SI Detection

SI Detection is a total solutions provider for radiation safety and emergency response, established with investment from the aerospace company SATREC Initiative and backed by over 20 years of expertise in radiation measurement and analysis.

In 2002, the company developed state-of-the-art radiation monitoring equipment jointly with the Korea Institute of Nuclear Safety (KINS), contributing to Korea's national environmental radiation monitoring network (IERNet), which now operates unmanned monitoring posts across the country.

SI Detection has also proven its competitiveness abroad, securing contracts with the IAEA and achieving steady annual exports to government agencies in China, Thailand, Malaysia, the Philippines, and Qatar.

Its flagship products -- the Environmental Radiation Monitoring System and the Nuclear Facility Monitoring System -- reflect the company's core technologies in radiation measurement and emergency response.

Environmental Radiation Monitoring System Radiation Survey System Realtime Sea/Fresh Water Portable Measurement System
Send inquiry Visit website

Products

EFRD 3300 CUBE Ⅱ Image 1

EFRD 3300 CUBE Ⅱ

Environmental Radiation Monitoring System

CE KC
Size 350*537*1394 mm
Weight ~60kg HS Code 9030.10-0000
Key Specifications ○ NaI(Tl) 76*76mm Primary Detector ○ 50~3,000 keV Energy Range ○ 0.001~50uSv/h Dose range ○ GM counter Secondary Detector ○ Throughput 100,000 cps MCA (1024 CH) ○ Solar panel/ GPS/ Weather station, LED Display optional accessories ○ 3G(4G)-TCP/IP Multi-plex communication
Applicaiton Areas ○ Local Governments and Municipalities ○ Nuclear Power Plants ○ Nuclear Research Institutes ○ Emergency Response Organizations ○ Public Safety & Homeland Security ○ Environmental Radiation Monitoring Sites ○ Nuclear Medicine

EFRD 3300 CUBE Ⅱ is a smart off-site platform designed for intuitive and reliable operation of environmental radiation monitoring posts. Built on SI Detection's extensive experience with environmental radiation monitoring applications worldwide, the system provides continuous gamma radiation monitoring, remote data acquisition, and centralized system management. It consists of GammaPACK, an integrated gamma detector package, a local controller unit, a power management unit, and a rugged outdoor housing designed for continuous operation under harsh environmental conditions. Its compact, low-power design also enables flexible deployment in remote locations, including stand-alone solar-powered operation, while various communication interfaces support remote monitoring and control from centralized monitoring systems.

Rad XP BP N33 Image 1
Rad XP BP N33 Image 2

Rad XP BP N33

Radiation Survey System

CE
Size 340x250x450(H)mm
Weight 7kg HS Code 9030.10-1000
Key Specifications ○ Detector: 3" × 3" NaI(Tl) Scintillation Detector ○ Gamma Energy Range: 50-3,000 keV ○ Gamma Dose Rate Range: 0.001-50 μSv/h ○ GM Counter (Optional): Up to 30 mSv/h ○ Neutron Detector (Optional): He-3 Proportional Counter ○ Neutron Energy Range: 0.025 eV-14 MeV ○ Neutron Dose Rate Range: 0.1 μSv/h-10 mSv/h ○ MCA: Built-in HAMPack MCA ○ MCA Throughput: 100,000 CPS ○ GPS Accuracy: < 5 m ○ Wireless Communication: Bluetooth ○ Power Consumption: 10 W ○ Power Supply: Li-Po Battery ○ Operating Software: GeoRaMon ○ Centralized Monitoring: u-RaMon ○ Mobile Application: e-RaMon for Android ○ Standard Accessories: In-Situ Tripod & Dedicated Carrier Box

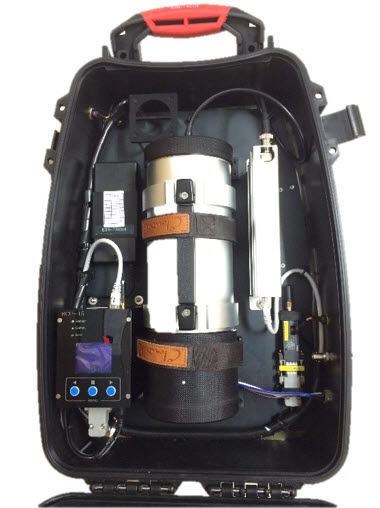

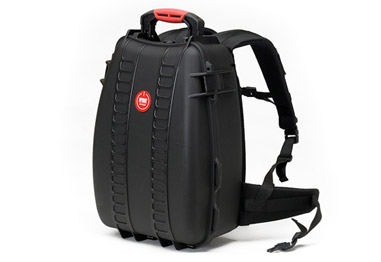

Rad XP Backpack (Rad XP BP N33) is a complete and integrated stand-alone radiation survey system designed for gamma spectroscopy, neutron detection, and in-situ radiation analysis. The system integrates a NaI(Tl) scintillation detector for gamma spectroscopy, a GM counter for high-dose measurement, and a He-3 detector for neutron detection, together with a local controller and a high-accuracy built-in GPS module. Its built-in HAMPack MCA with a high-speed ADC enables high-quality spectrum acquisition and reliable field measurements. With a dedicated tripod, the system can also be used for in-situ environmental radiation and contamination monitoring. Its backpack design, Bluetooth-based hands-free operation, and easy installation and maintenance make it well suited for mobile radiation surveys and field operations.

RXP-WA Image 1
RXP-WA Image 2

RXP-WA

Realtime Sea/Fresh Water Portable Measurement System

IP66
Size Diameter 11x660mm
Weight 20kg HS Code 9030.10-1000
Key Specifications ○ NaI(Tl) or CeBr Scintillator detector ○ Energy range 50~3,000keV ○ Resolution ~7% NaI(Tl)@662keV / ~4% CeBr@662keV ○ Unit CPS, Activity[Bq/L] ○ MDA < 1Bq/L (30min.@662keV) ○ Detection limit <0.01Bq/L (30 days) ○ Power consumption 2.5W (typical) ○ Operating temperature -20℃~+60℃
Application Areas ○ Nuclear Power Plants ○ Sea Water Monitoring ○ Fresh Water Monitoring ○ Environmental Radiation Monitoring ○ Radioactive Waste Management ○ Nuclear Facilities ○ Research & Calibration Laboratories

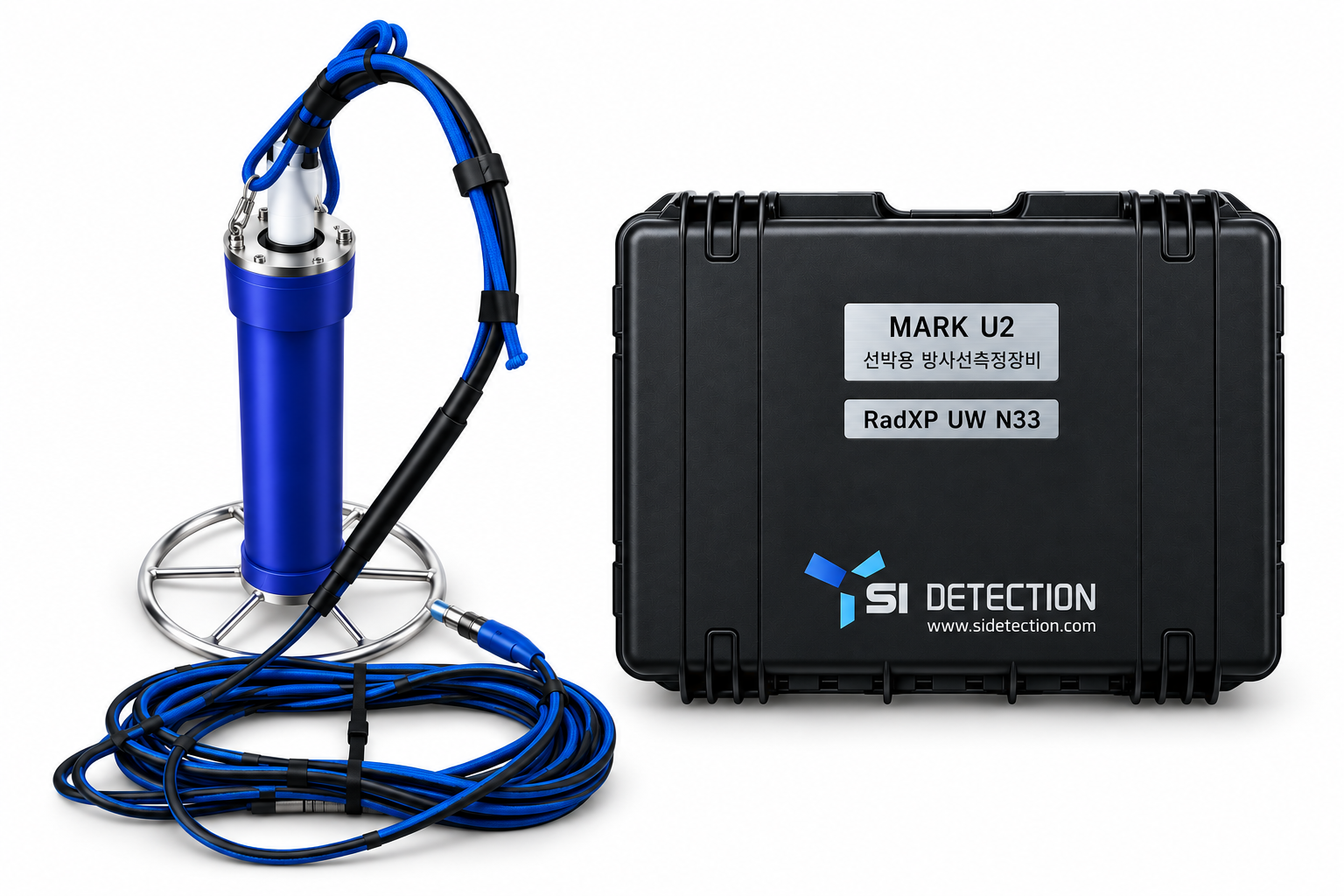

Model RXP-WA is a portable, near-real-time water radioactivity monitoring system designed for the detection and measurement of radioactivity in seawater and freshwater. Equipped with a high-efficiency scintillation detector, such as NaI(Tl) or CeBr, the system provides radionuclide identification and radioactivity measurement for reliable water monitoring. Its optimized lead shielding and low-noise electronics enable the detection of very low radiation levels, even below background levels. The system also provides automatic alarms when measured radioactivity exceeds user-defined threshold levels, making it suitable for rapid and reliable field monitoring of water contamination.

Certifications

  • CE
  • KC
  • IP66

COMPANY INFORMATION

  • 21,
    Yuseong-daero 1628beon-gil,
    Yuseong-gu, Daejeon,
    Republic of Korea
  • 1 April 2015
  • www.sidetection.com
